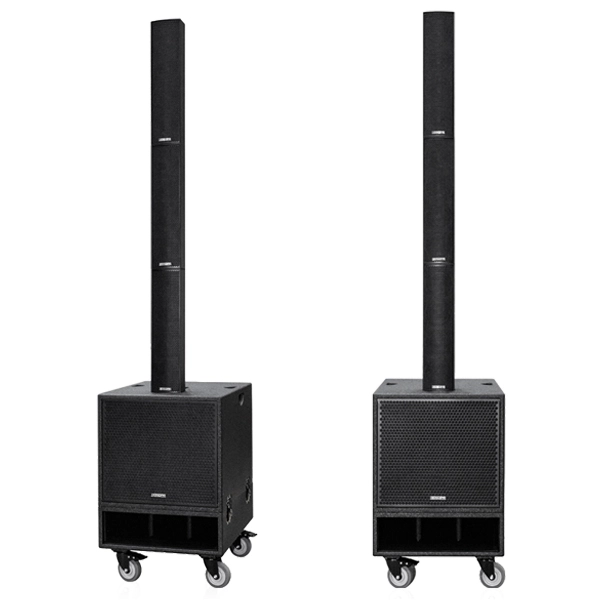

LA-4241B LA-180SUB Portable Line Array Sound System - 翻译中...

Ciri-ciri

● 4×4" full-range speaker units for high clarity and balanced sound reproduction across a wide frequency range.
● 18" woofer unit in the subwoofer for powerful low-frequency output, enhancing bass performance.
● Telescoping support pole with cable for easy adjustment and flexibility during setup, ensuring ideal sound projection.
● Full-Range Speaker with Aluminum Alloy Enclosure and waterproof sound mesh for durability.
● Detachable full-range speakers that can be conveniently stored inside the bass reflex port of the subwoofer for compact storage and transport.
● Equipped with four 4-inch silent wheels with brakes, ensuring easy mobility and stability during setup and use.
● The system is suitable for both mobile and fixed installations, such as banquet halls, conference rooms, and outdoor venues.

Hubungi sekarang Tinggalkan mesej Muat turun

Pengenalan
Spesifikasi

翻译中...

Model	LA-4241B
Speaker Unit	4 × 4" Full-range Drivers
Rated Power	280W @ 8Ω / 800W (peak)
Frequency Range	100Hz-20kHz
Sensitivity(1W/1m)	98dB
SPL	120dB (Continuous), 130dB (Peak)
Nominal Impedance	16Ω
Nominal Coverage Angle (H × V)	120° × 80°
Crossover Frequency	120Hz
Connectors	Two Neutrik NL4 Sockets (1-/1+)
Enclosure Material	Aluminum Alloy
Product Dimension(W×H×D)	125 × 500 × 138mm
Product Weight	7.2kg

Model		LA-180SUB
Speaker Unit		1 × 18" Woofer, 220mm Magnet / 100mm Voice Coil
Rated Power		1000W (Continuous), 4000W (Peak)
Frequency Response		28Hz - 300Hz
Sensitivity(1W/1m)		92dB
SPL		131dB (Continuous), 136dB (Peak)
Nominal Impedance		8Ω
Crossover Frequency		120Hz
Connectors		One Neutrik NL4 Socket
Product Dimension(W×H×D)		502 ×608 × 650mm
Product Weight		35kg
Amplifier Module	Power Configuration	1600W + 800W @ 8Ω
	Frequency Response	20Hz - 20kHz (-0.5dB at 1/8 Output Power)
	SNR	≥101dB (A-Weighted)
	Damping Factor	500
	Input Sensitivity/Impedance	1.2V / 22kΩ
	THD	≤0.05%
	Input Voltage	~90V - 270V, 50/60Hz (PFC Power Supply)
	Output Circuit Type	Class D
	Protection Features	Overload Protection, Overvoltage Protection, Undervoltage Protection, Overheat Protection, Short Circuit Protection, DC Protection, etc.
	DSP Decoder Chip	96kHz Sampling Rate
