AM6401 7.2 Channel Surround Sound Audio Decoder - 翻译中...

Ciri-ciri

● 4.3 Inch 65.5K-color LCD display with selectable Chinese and English interface, clear and intuitive
● 4-in/1-out HDMI audio and video interface, supporting optical and coaxial digital audio inputs
● Full support for 7.2-channel surround decoding with 7.2-channel audio output
● 15-band parametric EQ for music, with independent 15-band parametric EQ for dual microphone channels (A/B)
● Professional KTV reverb effects, with independent 5-band EQ for echo and reverb, and 4-level microphone feedback suppression for effective anti-howling performance
● Independent 8-band parametric EQ (PEQ) is provided for the main output, center, subwoofer, side surround, and back surround channels, along with adjustable crossover input selection and mix ratio, polarity, delay, limiting, and gain control.
● Equipped with a professional-grade imported DSP chip (400MHz), 48kHz sampling rate, and 32-bit floating-point processing; high-performance 24-bit A/D and D/A converters for excellent sound quality.
● USB control interface with dedicated PC control software.
● 8 preset memory configurations.
● Supports 8K video signal decoding and output.
● Multi-functional remote controller.
● One-touch switching between Cinema, KTV, and Bluetooth modes.
● Built-in 7.2-channel speaker test mode.

Hubungi sekarang Tinggalkan mesej

Pengenalan
Spesifikasi

翻译中...

Model		AM6401
Output Channel		Front Left (FL), Front Right (FR), Center (C), Subwoofer (SW), Surround Left (SL), Surround Right (SR), Back Surround Left (BSL), Back Surround Right (BSR) Channel
SNR	Microphone	＞95dB
SNR	Music	＞97dB
Distortion	Microphone	＜0.1%
Distortion	Music	＜0.1%
Max. Input Level	Microphone	250mV
Max. Input Level	Music	1V
Max. Output Level	Microphone	1V rms
Max. Output Level	Music	1V rms
Sensitivity	Microphone	15mV
Sensitivity	Music	300mV
Input Impedance	Microphone	10 kΩ, unbalanced
Input Impedance	Music	47 kΩ, unbalanced
Output Impedance		300 kΩ / 1 kΩ, unbalanced
Channel Separation		＞87dB
Frequency Response		20Hz~20kHz
Feedback Suppression		4-level feedback control
Channel Parameters	Microphone / Music	15-band PEQ + Low Pass + High Pass, Gain: −24 dB ~ +12 dB
Channel Parameters	Output	Signal mixing + Polarity + 8-band PEQ + Low Pass + High Pass + Limiter + Delay + Gain
Net Weight		4.8kg
Package Size		595×315×140mm

PREV: Tiada maklumat

Seterusnya: AM6402 4K UHD Blu-ray Media Player - 翻译中...

Produk berkaitan

AM6403 8-Channel Power Amplifier - 翻译中...April 24, 2026The AM6403 is a compact and lightweight power amplifier designed for high-end home theaters and fixed installation applications. It can also be configured to match various load impedances, allowing fl...view
AM6410 Power Sequencer - 翻译中...April 24, 2026This product is suitable for scenarios requiring sequential power distribution, such as audio engineering, TV broadcasting systems, computer networks, and power facilities.The power sequencer can star...view

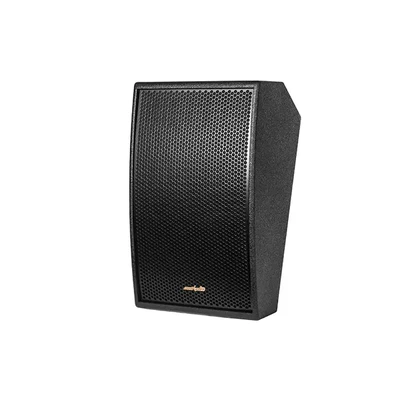

MA6405 Passive 2-Way Full-Range Home Theater Speaker - 翻译中...April 24, 2026The AM6405 is a versatile full-range home theater speaker that can serve as either a main speaker or a surround speaker in a 5.1 or 7.1 home theater system. It acts as a core sound-producing unit, del...view
